TRK-9709 4" Double Revolving Truck
TRK-9709 4" Double Revolving Truck - Satin is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
- Only flags made specifically for exterior use should be displayed outdoors.
- For the best results, do not expose your flag to rain, snow or abnormally high winds; these forces of nature can shorten its life considerably. Should the flag become wet, it should be spread out and allowed to dry completely. Do not fold or roll-up a wet or damp flag.
- To keep its rich colors looking bright, clean your flag regularly, before soiling and discoloration from dirt, smoke, dust and other airborne contaminants "set" in the fabric. Outdoor flags can be hand-washed with warm water and a mild soap, then thoroughly rinsed and spread out to dry. Do not let the flag stand in the wash water or you might experience some color "make off" onto the white stripes. Professional dry cleaning is recommended for indoor/ parade flags. Incidentally, many establishments will clean Old Glory free of charge, especially during the period just prior to Flag Day, June 14.
- Do not place the flag where the wind will whip it against rough surfaces, tree branches, wires, cables, etc. The smallest tear can soon result in a tattered flag. Keep pole surfaces free of heavy dirt, rust, scale and corrosion that could damage your flag.
- Inspect your flag regularly for signs of wear. In particular, look for "normal wear" fabric or thread breaks which may occur in the "fly" end. This is the end farthest from the staff. Trimming off and re-hemming torn or frayed ends will help extend the life of your flag.
Delivery and Shipping
Delivery and Shipping
Items will be shipped via UPS ground delivery unless otherwise specified in your order.
Purchaser is responsible for all shipping charges unless promoted on the site or noted on your invoice, including the additional cost of shipping should you choose to upgrade the shipping service.
In stock items or orders placed before 12pm EST will likely ship the next day (certain restrictions may apply). Custom orders and commercial flagpoles are shipped within 10-15 days. We will contact you via phone or e-mail to confirm product shipment.
Orders placed after 12pm EST will be processed the next day.
TRK-9709 4" Double Revolving Truck
TRK-9709 4" Double Revolving Truck

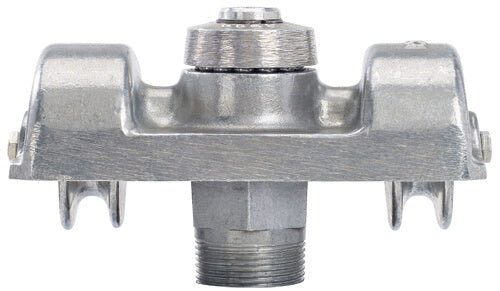

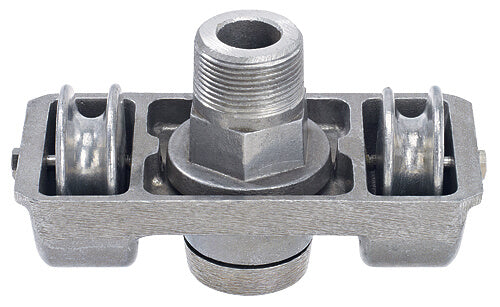

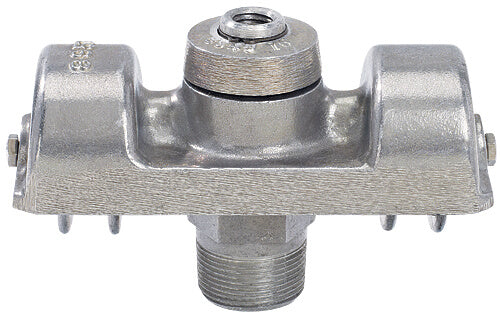

The TRK-9709 4" Double Revolving Truck is a premium flagpole truck featuring a cast aluminum body and a non-fouling design for dual flag systems. This truck includes two aluminum pulleys mounted on stainless steel axles, along with upper and lower stainless steel ball bearing assemblies for smooth operation and reliable performance.
Designed for flagpoles with a 4" shaft top diameter, this truck is equipped with a 1-1/4" NPT spindle and 1/2"-13NC top drilling (5/8"-11NC available). The recommended halyard diameter is 5/16", ensuring smooth and efficient flag-raising and lowering operations.
Key Features:
- Cast aluminum body for durability and strength
- Double aluminum pulleys mounted on stainless steel axles for dual flag operation
- Upper and lower stainless steel ball bearing assemblies for smooth rotation
- Non-fouling design for smooth flag operation with dual flags
- 1-1/4" NPT spindle threading (1" NPT and 1-1/2" NPT spindles available upon request)
- 1/2"-13NC top drilling (5/8"-11NC available)
- Ideal for external flagpoles with a 4" shaft top diameter
Powder Coat Finish Options:
- BZT - Powder Coat – BronzeTone
- BLK - Powder Coat – Black
- WHT - Powder Coat – White
- CLR - Powder Coat – Clear
Technical Specifications
- Brand: Concord American
- Model: TRK-9709
- Shaft Top Diameter: 4"
- Top Drilling: 1/2"-13NC (5/8"-11NC available)
- Recommended Halyard Diameter: 5/16"
- Spindle Threading: 1-1/4" NPT (1" NPT and 1-1/2" NPT spindles available upon request)
Why Choose This Truck?
The TRK-9709 4" Double Revolving Truck is designed for dual flag operations, offering a non-fouling design that ensures smooth flag-raising and lowering for both flags simultaneously. With its cast aluminum body, dual pulleys, and stainless steel ball bearings, this truck provides the perfect solution for reliable, long-lasting performance in external flagpoles with a 4" shaft top diameter. Available in several powder coat finishes, it combines functionality and aesthetic versatility.
