TRK-9430 7-1/2" Heavy-Duty Single Revolving Truck
TRK-9430 7-1/2" Heavy-Duty Single Revolving Truck

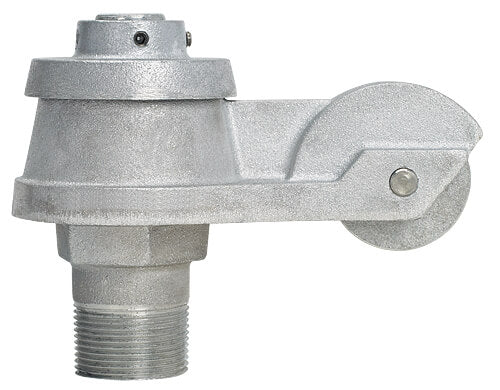

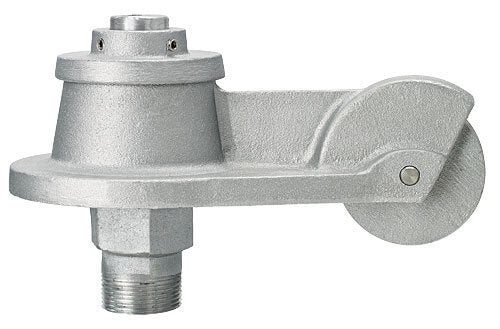

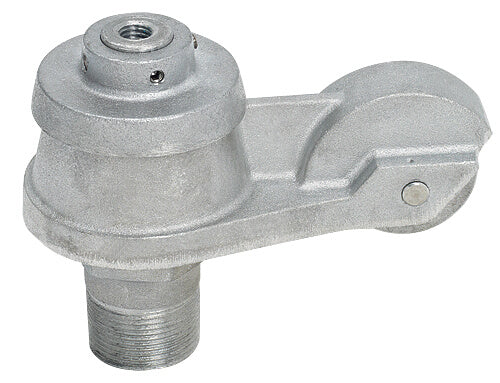

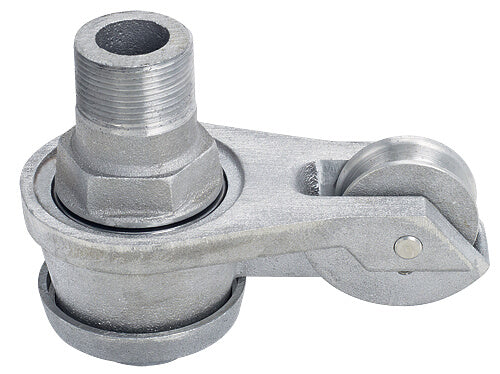

The TRK-9430 7-1/2" Heavy-Duty Single Revolving Truck is designed for heavy-duty flagpoles and features a heavyweight cast aluminum body for maximum strength and durability. This truck is equipped with a single aluminum pulley mounted on a stainless steel axle, along with SEALED upper and lower stainless steel ball bearing assemblies for smooth, long-lasting flag operation.
Designed for 3/8" halyard rope, the truck includes a 1-1/4" NPT spindle and 1/2"-13NC top drilling (5/8"-11NC also available). This truck is ideal for flagpoles with a 7-1/2" shaft top diameter, providing smooth operation even under heavy use.
Key Features:
- Heavyweight cast aluminum body and components for maximum durability
- Single aluminum pulley mounted on stainless steel axle
- SEALED upper and lower stainless steel ball bearing assemblies for long-lasting smooth performance
- 1-1/4" NPT spindle threading (1" NPT and 1-1/2" NPT spindles available upon request)
- 1/2"-13NC top drilling (5/8"-11NC available)
- Recommended for 3/8" halyard diameter
- Ideal for external flagpoles with a 7-1/2" shaft top diameter
Powder Coat Finish Options:
- BZT - Powder Coat – BronzeTone
- BLK - Powder Coat – Black
- WHT - Powder Coat – White
- CLR - Powder Coat – Clear
Technical Specifications
- Brand: Concord American
- Model: TRK-9430
- Shaft Top Diameter: 7-1/2"
- Top Drilling: 1/2"-13NC (5/8"-11NC available)
- Recommended Halyard Diameter: 3/8"
- Spindle Threading: 1-1/4" NPT (1" NPT and 1-1/2" NPT spindles available upon request)
Why Choose This Truck?
The TRK-9430 7-1/2" Heavy-Duty Single Revolving Truck is built to handle heavy-duty flag operations with ease. Its cast aluminum construction, coupled with sealed stainless steel ball bearings, ensures smooth flag-raising and lowering for flagpoles with a 7-1/2" shaft top diameter. This truck is designed for long-lasting performance and is available in various powder coat finishes for added protection and aesthetic appeal.
