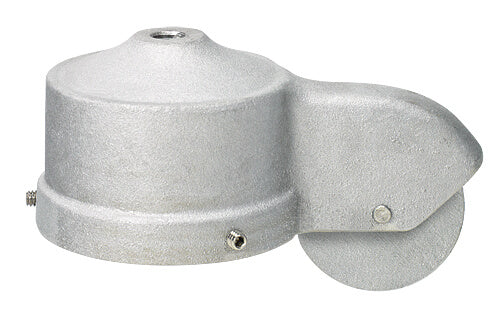

TRK-9101 1-7/8"- 2" Cap Style Single Stationary Truck

The TRK-9101 Cap Style Single Stationary Truck is a durable, cast aluminum flagpole truck designed for external halyard flagpole systems. Installed at the top of the flagpole, this stationary truck provides an exposed pulley and rope setup for smooth, reliable flag raising and lowering.

Built with a cast aluminum body and an aluminum pulley mounted on a stainless steel axle, the TRK-9101 offers long-term performance in outdoor environments. It is engineered to fit flagpoles with shaft top diameters from 1-7/8″ to 2″ and is compatible with standard external rope halyard systems.

This cap style stationary truck secures firmly to the pole using stainless steel set screws or bolts, ensuring stability during operation. Designed for versatility, it accepts a wide range of ornamental finials, including balls and eagles, making it suitable for residential, commercial, and light industrial flagpole installations.

Key Features

• Cast aluminum cap style stationary truck
• Single aluminum pulley with stainless steel axle
• Designed for external rope halyard flagpoles
• Accepts balls, eagles, and other finials
• Corrosion-resistant construction for outdoor use

Standard Specifications

• Cast aluminum body
• Aluminum pulley on stainless steel axle
• 1/2″-13 NC top drilling
• Optional 5/8″-11 NC available
• Recommended halyard diameter: 5/16″
• Stainless steel set screws (3) for sizes up to 3-1/2″
• Stainless steel bolts (3) for sizes 4″ and larger

Technical Specifications

• Brand: Concord American
• Model: TRK-9101
• Shaft Top Diameter: 1-7/8″–2″
• Maximum Shaft Top Diameter: 2″
• Pulley Material: Aluminum

External Flagpole Truck Details

External flagpole trucks are installed at the top of the flagpole and feature an exposed pulley and rope system. All trucks are designed to accept balls, eagles, and finials with standard 1-1/4″ NPT spindle threading. Optional 1″ NPT and 1-1/2″ NPT spindles are available upon request.
