IRW100I24 100' x 12" x .500" Apex Series - AIRW

$26,772.00

Shipping calculated at checkout.

Color: Satin

Product variants

Care information

Only flags made specifically for exterior use should be displayed outdoors.
For the best results, do not expose your flag to rain, snow or abnormally high winds; these forces of nature can shorten its life considerably. Should the flag become wet, it should be spread out and allowed to dry completely. Do not fold or roll-up a wet or damp flag.
To keep its rich colors looking bright, clean your flag regularly, before soiling and discoloration from dirt, smoke, dust and other airborne contaminants "set" in the fabric. Outdoor flags can be hand-washed with warm water and a mild soap, then thoroughly rinsed and spread out to dry. Do not let the flag stand in the wash water or you might experience some color "make off" onto the white stripes. Professional dry cleaning is recommended for indoor/ parade flags. Incidentally, many establishments will clean Old Glory free of charge, especially during the period just prior to Flag Day, June 14.
Do not place the flag where the wind will whip it against rough surfaces, tree branches, wires, cables, etc. The smallest tear can soon result in a tattered flag. Keep pole surfaces free of heavy dirt, rust, scale and corrosion that could damage your flag.
Inspect your flag regularly for signs of wear. In particular, look for "normal wear" fabric or thread breaks which may occur in the "fly" end. This is the end farthest from the staff. Trimming off and re-hemming torn or frayed ends will help extend the life of your flag.

Delivery and Shipping

Items will be shipped via UPS ground delivery unless otherwise specified in your order.
Purchaser is responsible for all shipping charges unless promoted on the site or noted on your invoice, including the additional cost of shipping should you choose to upgrade the shipping service.

In stock items or orders placed before 12pm EST will likely ship the next day (certain restrictions may apply). Custom orders and commercial flagpoles are shipped within 10-15 days. We will contact you via phone or e-mail to confirm product shipment.

Orders placed after 12pm EST will be processed the next day.

IRW100I24 100' x 12" x .500" Apex Series - AIRW Flagpole

The IRW100I24 100' x 12" x .500" Apex Series - AIRW is a revolutionary flagpole designed for high-performance and long-lasting durability. Featuring a reinforced internal winch and wire halyard system, this 100-foot aluminum flagpole offers a lightweight, corrosion-resistant alternative to steel poles, making it an efficient and cost-effective solution for flag displays in moderate wind areas.

Part of the APEX Series from Concord American Flagpole, this flagpole offers exceptional strength with a butt diameter of 12″ and a wall thickness of .500″. Its raised reinforced door frame design combines the security of an internal halyard winch and wire cable system with the necessary strength to handle moderate wind speeds, making it an ideal choice for large-scale flag displays.

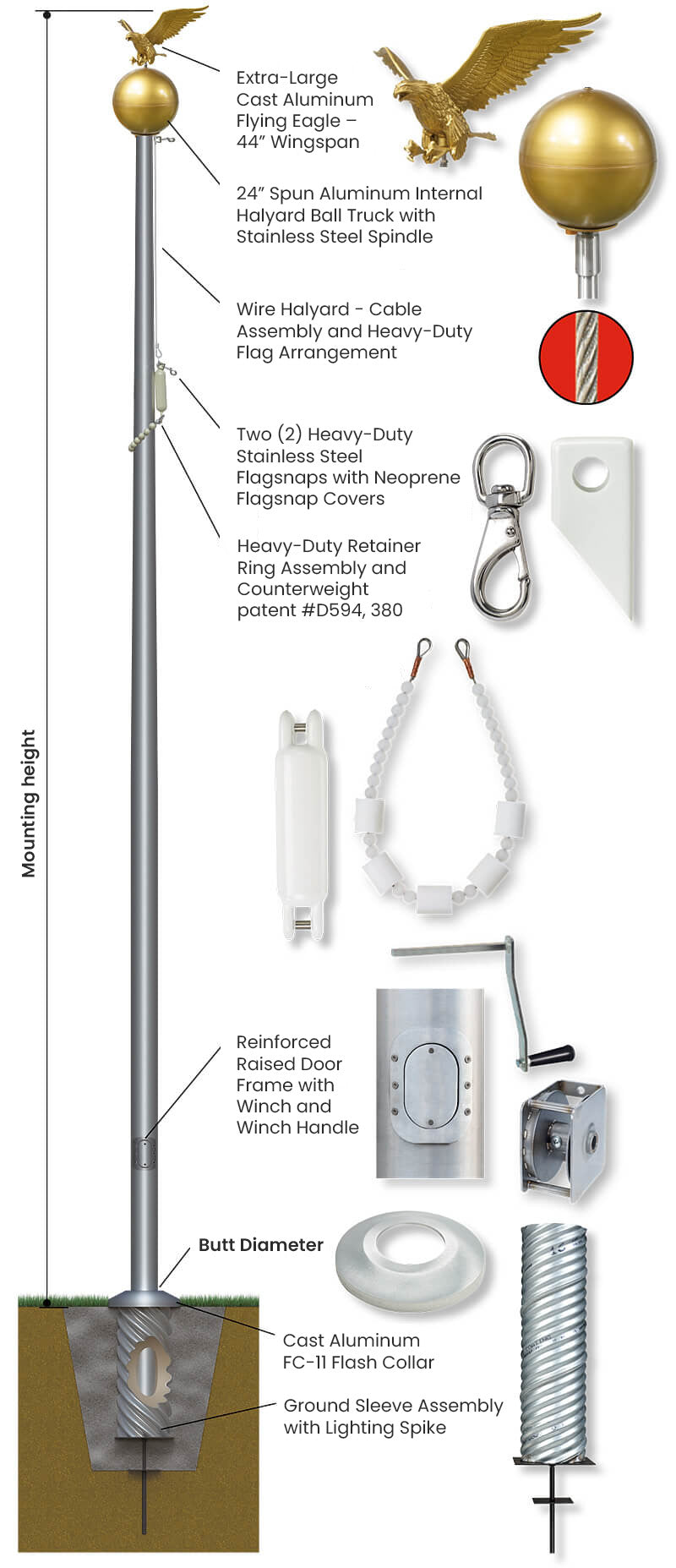

Key Features:

Lifetime pole shaft warranty for lasting peace of mind
Extra-large cast aluminum flying eagle with a 44" wingspan
Spun aluminum revolving ball truck with dual sealed stainless steel bearing assemblies
Complete internal halyard assembly with wire halyard cable
Heavy-duty 20' x 30' flag arrangement with shock spring assembly
Two heavy-duty stainless steel swivel flag snaps
Two neoprene flagsnap covers for added durability
Patented plastic-coated counterweight with heavy-duty beaded retainer ring assembly
Stainless steel winch assembly with removable hand crank

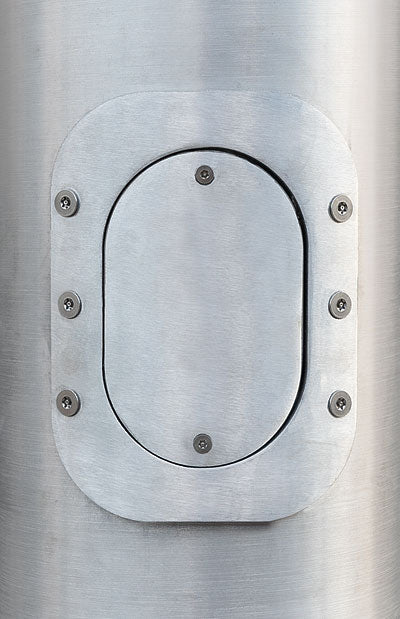

Reinforced raised door frame with tamper-proof screws for added security
Cast aluminum FC-11 flash collar for a polished finish
Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike

Technical Specifications:

Brand: Concord American
Model: IRW100I24
Mounting Height: 100' ft
Butt Diameter: 12"
Wall Thickness: .500"
Pole Sections: 4
Set Depth: 9'6" ft
Total Length: 110' ft
Top Diameter: 4"
Standard Flag Size: 20' x 30'
Max Wind Speed (Nylon Flag): 90 mph
Max Wind Speed (No Flag): 128 mph

Why Choose the APEX Series Flagpole?

The APEX Series IRW100I24 flagpole is designed for optimal strength and efficiency, offering a lightweight, corrosion-resistant alternative to traditional steel poles. Its innovative internal winch and wire halyard system ensure smooth flag operation, while the reinforced door frame design provides enhanced security. Whether you're looking for a high-performance flagpole for oversized or multiple flag applications or need a cost-effective solution, the APEX Series offers a reliable and durable option for large-scale installations in moderate wind areas.
