SKU: ISC20C51-SAT

ISC20C51 20' x 5" x .156" Sentry Series - ISC

$2,448.00

Shipping calculated at checkout.

Color: Satin

Product variants

Care information

Only flags made specifically for exterior use should be displayed outdoors.
For the best results, do not expose your flag to rain, snow or abnormally high winds; these forces of nature can shorten its life considerably. Should the flag become wet, it should be spread out and allowed to dry completely. Do not fold or roll-up a wet or damp flag.
To keep its rich colors looking bright, clean your flag regularly, before soiling and discoloration from dirt, smoke, dust and other airborne contaminants "set" in the fabric. Outdoor flags can be hand-washed with warm water and a mild soap, then thoroughly rinsed and spread out to dry. Do not let the flag stand in the wash water or you might experience some color "make off" onto the white stripes. Professional dry cleaning is recommended for indoor/ parade flags. Incidentally, many establishments will clean Old Glory free of charge, especially during the period just prior to Flag Day, June 14.
Do not place the flag where the wind will whip it against rough surfaces, tree branches, wires, cables, etc. The smallest tear can soon result in a tattered flag. Keep pole surfaces free of heavy dirt, rust, scale and corrosion that could damage your flag.
Inspect your flag regularly for signs of wear. In particular, look for "normal wear" fabric or thread breaks which may occur in the "fly" end. This is the end farthest from the staff. Trimming off and re-hemming torn or frayed ends will help extend the life of your flag.

Delivery and Shipping

Items will be shipped via UPS ground delivery unless otherwise specified in your order.
Purchaser is responsible for all shipping charges unless promoted on the site or noted on your invoice, including the additional cost of shipping should you choose to upgrade the shipping service.

In stock items or orders placed before 12pm EST will likely ship the next day (certain restrictions may apply). Custom orders and commercial flagpoles are shipped within 10-15 days. We will contact you via phone or e-mail to confirm product shipment.

Orders placed after 12pm EST will be processed the next day.

ISC20C51 20' x 5" x .156" Sentry Series Flagpole

The ISC20C51 20' x 5" x .156" Sentry Series Flagpole is a commercial-grade flagpole with a secure internal rope halyard and cam cleat system, designed for moderate wind speed areas. It features a reinforced raised door frame and a lockable access door for added security, making it an ideal solution for residential and light commercial properties.

Manufactured with high-quality materials, including a 5-inch butt diameter and .156-inch wall thickness, this flagpole offers exceptional strength and stability. The cast aluminum revolving truck with sealed stainless steel bearing assemblies ensures smooth flag operation, while the reinforced raised door frame provides enhanced security for the internal halyard system.

Built to withstand the elements, the Sentry Series flagpole supports a standard 4' x 6' flag and can endure wind speeds up to 160 mph with a nylon flag. The lockable access door, combined with tamper-proof screws and stainless steel bolts, ensures secure operation while maintaining easy flag access.

Key Features:

Internal rope halyard with cam cleat system for secure and easy flag operation

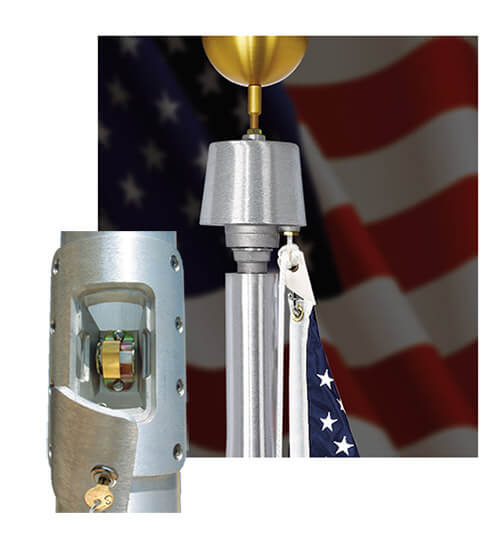

Reinforced raised door frame for enhanced security
Cast aluminum revolving truck with sealed stainless steel bearing assemblies

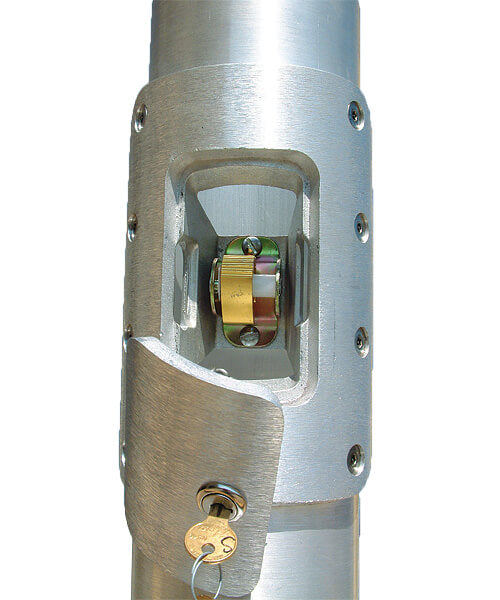

Lockable access door with tamper-proof screws for added security
Heavy-duty 5/16" #10 polyester rope for durability and strength

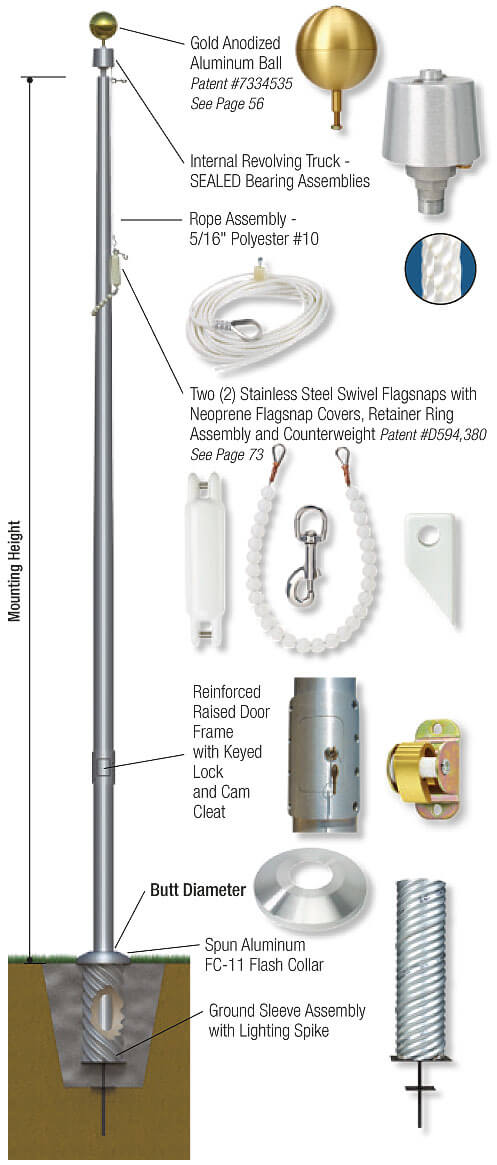

Standard Components Included:

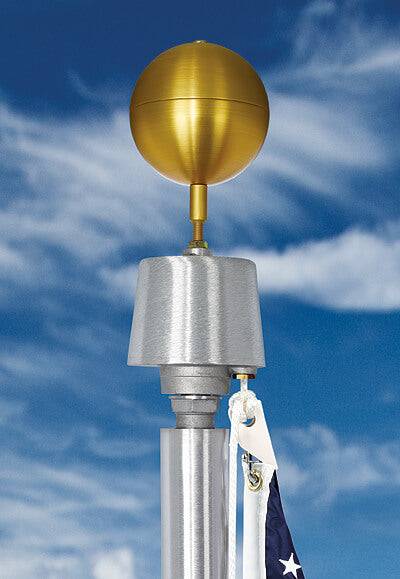

Patented heavy-duty gold anodized aluminum ball
Heavy-duty cast aluminum revolving truck with aluminum pulley and stainless steel spindle
Complete internal halyard assembly with heavy-duty rope halyard
Two stainless steel flagsnaps
Two neoprene flagsnap covers
9" cast aluminum cleat
Heavy-duty cast aluminum FC-11 flash collar
Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike

Technical Specifications

Brand: Concord American
Model: ISC20C51
Mounting Height: 20 ft
Butt Diameter: 5 in
Wall Thickness: .156 in
Pole Sections: 1
Set Depth: 2'-0"
Total Length: 22'-0"
Top Diameter: 3 in
Standard Flag Size: 4 ft x 6 ft
Max Wind Speed (Nylon Flag): 160 mph
Max Wind Speed (Polyester Flag): 142 mph
Max Wind Speed (Two Flags): 136 mph
Max Wind Speed (No Flag): 262 mph

Why Choose This Flagpole?

The Sentry Series ISC20C51 flagpole offers a perfect blend of security, ease of use, and durability. The internal rope halyard system and lockable access door, along with its robust construction, make it an excellent choice for residential and small business applications in moderate wind conditions.
