SKU: IRC20D61-SAT

IRC20D61 20' x 6" x .188" Sentry II Series - IRC

$3,609.00

Shipping calculated at checkout.

Color: Satin

Product variants

Care information

Only flags made specifically for exterior use should be displayed outdoors.
For the best results, do not expose your flag to rain, snow or abnormally high winds; these forces of nature can shorten its life considerably. Should the flag become wet, it should be spread out and allowed to dry completely. Do not fold or roll-up a wet or damp flag.
To keep its rich colors looking bright, clean your flag regularly, before soiling and discoloration from dirt, smoke, dust and other airborne contaminants "set" in the fabric. Outdoor flags can be hand-washed with warm water and a mild soap, then thoroughly rinsed and spread out to dry. Do not let the flag stand in the wash water or you might experience some color "make off" onto the white stripes. Professional dry cleaning is recommended for indoor/ parade flags. Incidentally, many establishments will clean Old Glory free of charge, especially during the period just prior to Flag Day, June 14.
Do not place the flag where the wind will whip it against rough surfaces, tree branches, wires, cables, etc. The smallest tear can soon result in a tattered flag. Keep pole surfaces free of heavy dirt, rust, scale and corrosion that could damage your flag.
Inspect your flag regularly for signs of wear. In particular, look for "normal wear" fabric or thread breaks which may occur in the "fly" end. This is the end farthest from the staff. Trimming off and re-hemming torn or frayed ends will help extend the life of your flag.

Delivery and Shipping

Items will be shipped via UPS ground delivery unless otherwise specified in your order.
Purchaser is responsible for all shipping charges unless promoted on the site or noted on your invoice, including the additional cost of shipping should you choose to upgrade the shipping service.

In stock items or orders placed before 12pm EST will likely ship the next day (certain restrictions may apply). Custom orders and commercial flagpoles are shipped within 10-15 days. We will contact you via phone or e-mail to confirm product shipment.

Orders placed after 12pm EST will be processed the next day.

IRC20D61 20' Sentry II Internal Halyard Flagpole – 6" Butt Diameter | .188" Wall | Welded Door Frame | Concord American

The IRC20D61 20 ft Sentry II Internal Halyard Flagpole by Concord American is an extra heavy-duty commercial aluminum flagpole engineered for maximum wind resistance, structural integrity, and secure internal operation. Featuring a secure internal rope halyard with cam cleat system, this model delivers tamper-resistant performance with a smooth, flush architectural appearance.

Manufactured from high-strength aluminum with a 6-inch butt diameter and heavy-duty .188-inch wall thickness, this single-piece 20 ft flagpole provides exceptional rigidity and industry-leading wind load capacity. Its reinforced construction makes it ideal for coastal regions, open commercial properties, municipal facilities, and other high wind environments.

The Sentry II Series features a reinforced welded aluminum door frame inset directly into the precision-cut pole opening. This welded design significantly enhances structural strength while maintaining a flush mount, lockable access door for superior security and clean aesthetics.

Key Features:

Extra heavy-wall aluminum construction (.188" thickness)
6" butt diameter for enhanced structural stability
Secure internal rope halyard system with cam cleat
Reinforced welded aluminum door frame for maximum strength
Flush mount locking access door with tamper-resistant hardware
Designed for high wind speed environments
Superior strength-to-size ratio
Ideal for commercial, municipal, educational, and government properties

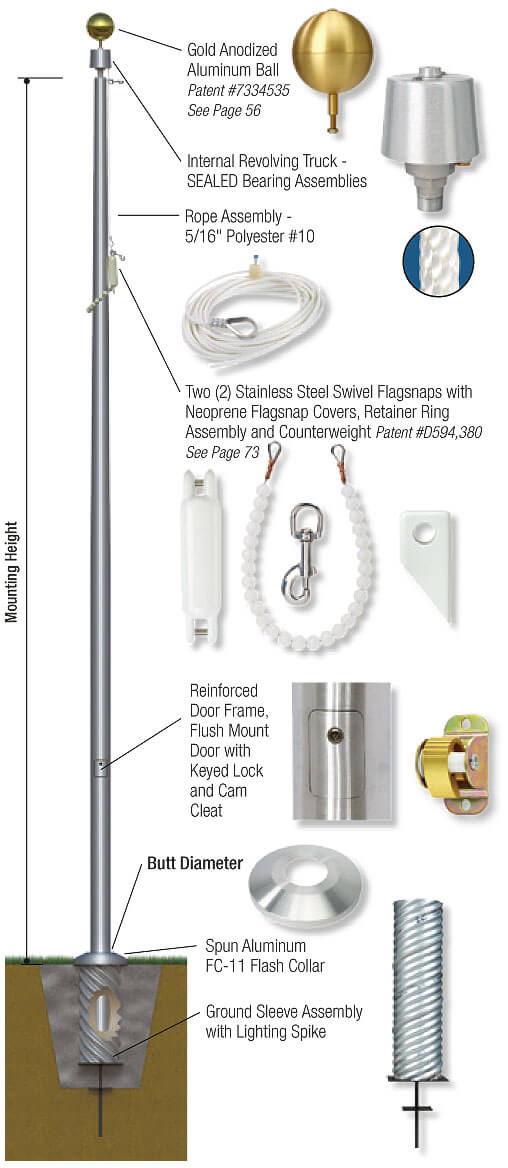

Standard Components Included

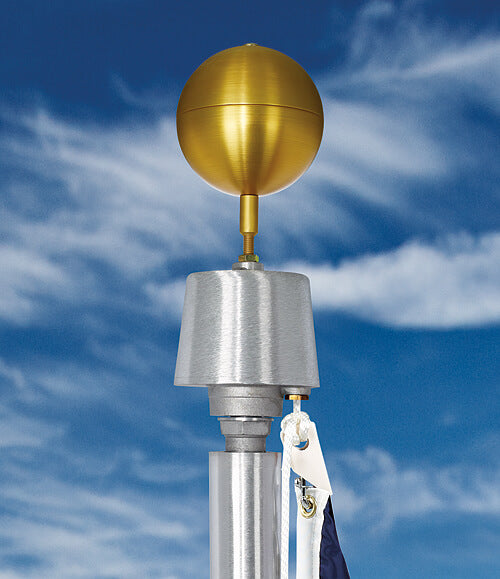

Patented heavy-duty gold anodized aluminum ball
Cast aluminum revolving truck with sealed stainless steel bearing assemblies, aluminum spindle, cast brass exit bushing, and removable hood
Complete internal halyard assembly
5/16" #10 polyester rope halyard
Two stainless steel swivel flag snaps
Two neoprene flag snap covers
Cam cleat system
Reinforced welded aluminum door frame
Flush mount access door with lock and keys
Spun aluminum FC-11 flash collar
Galvanized 16-gauge corrugated steel ground sleeve with steel grounding spike

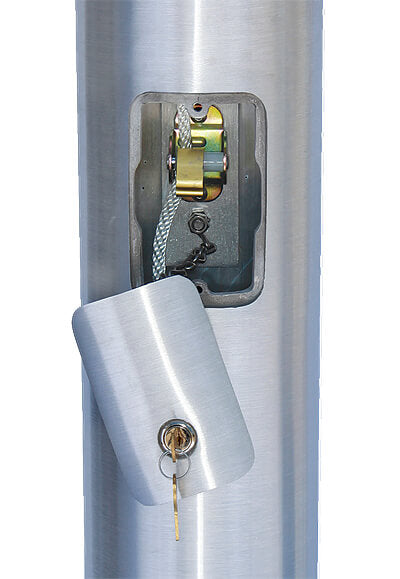

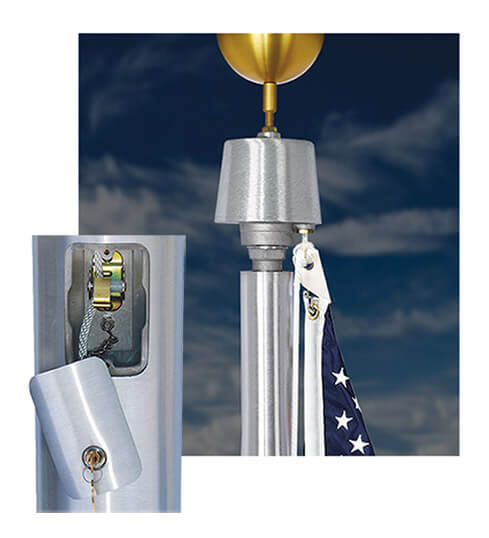

Reinforced Welded Door Frame Design

Sentry II flagpoles are engineered with an inset reinforced aluminum door frame welded directly into the pole shaft. This precision-welded construction increases structural strength and allows for higher maximum wind speed ratings across diameter and wall thickness configurations. The design delivers exceptional strength-to-size performance while maintaining a smooth, flush-fitting lockable access door.

Technical Specifications

Brand: Concord American
Model: IRC20D61
Mounting Height: 20 ft
Butt Diameter: 6 in
Wall Thickness: .188 in
Pole Sections: 1
Set Depth: 2 ft
Total Length: 22 ft
Top Diameter: 3.5 in
Standard Flag Size: 4 ft x 6 ft
Max Wind Speed (Nylon Flag): 229 mph
Max Wind Speed (Polyester Flag): 205 mph
Max Wind Speed (Two Flags): 198 mph
Max Wind Speed (No Flag): 328 mph

Why Choose the IRC20D61 Sentry II Flagpole?

The IRC20D61 represents one of the strongest 20 ft configurations in the Sentry II lineup. With its 6-inch diameter, heavy .188-inch wall thickness, reinforced welded door frame, and exceptional wind ratings, this flagpole is built for demanding environments where maximum strength, security, and long-term durability are essential.
